This Note contains:

• Introduction of functional Programming
• F# ide setup
• F# Syntax
• F# types

• What is functional programming?
  • What constitutes a function?
  • Properties of function
  • Side Effect
    • Example
  • Pure function
  • Referential Transparency
• F# IDE Setup
  • Visual Studio Code
  • JetBrain Rider
• Mathematical function example in F#
• Syntax
  • Your first F# function
  • F# type inference
  • Function signature
• Function Type
• Function application
• Function interactive
• The power of functions
• Types in F#
  • Basic type
  • Composition type
    • Tuple
    • Records
    • Discriminated Union
    • Option

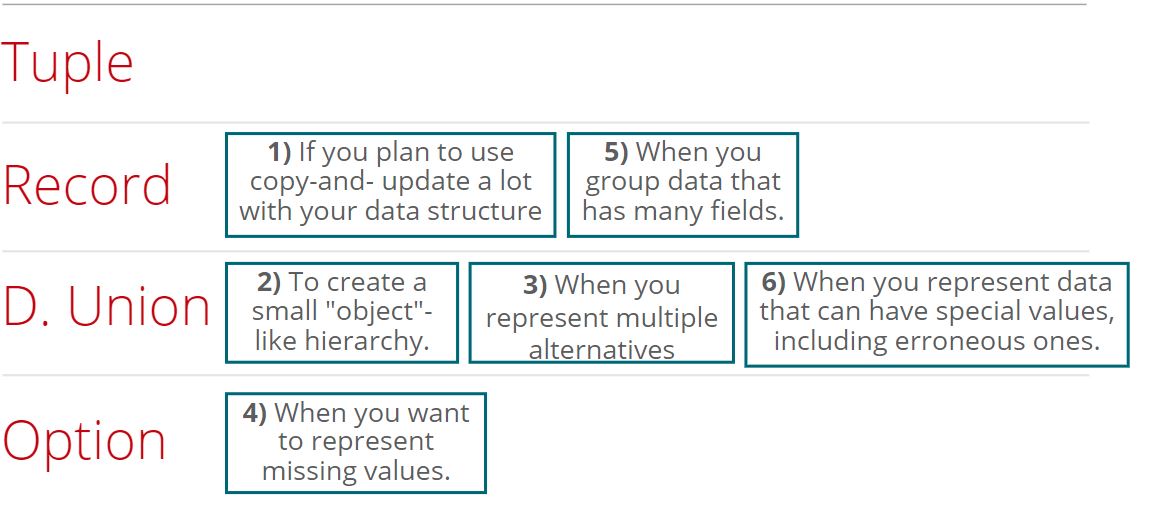

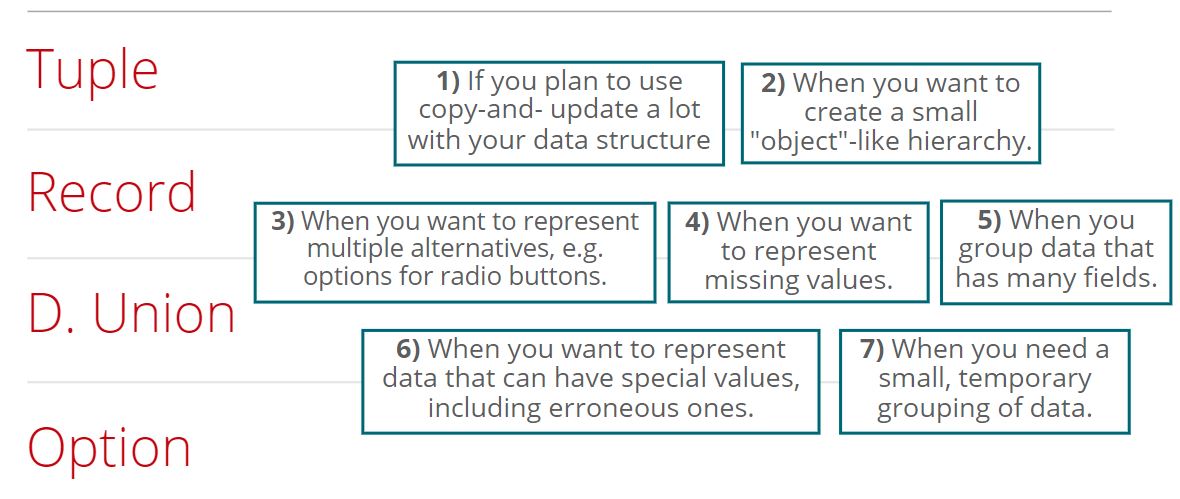

  • Exercise: Match usage scenario with data type
  • F# specific types
    • Common .NET types
    • Designed for pure functional programming
  • F# functional types - Advantage

What is functional programming?

Functional programming is a programming paradigm characterized by the use of mathematical functions and the avoidance of side effect

• fundamental approach to structuring programs
• via application and composition of functions

What constitutes a function?

A function include:

• The input
• The relationship
• The output

A function is anything which accepts exactly one input value and, when this is supplied, evaluates an expression
to generate exactly one output value.

Properties of function

1. One input - one output

   There is always exactly one input and one output

2. Immutability

   • Value once created, can never be altered
   • The input and output values are immutable
   • Work with copies of data instead

3. Depending only on input

   • Function output is solely determined by its input parameter
   • Can your function possibly return a different result when given the same input?
     • Mutable global variables
     • User input
     • Random numbers generator

Side Effect

Side effect is an unwanted or unexpected result or condition that comes along with the desired effects of something.

There is also “functional” side effect

• Observable interaction of a function with anything outside of it
• Anything more than computation of a result based on input parameters

Example

• Altering a variable outside of the function
• Writing data to a file
• Displaying something on the screen
• Sending data over the network

A function should have no side effect. It doesn’t change the input or output.

Pure function

Two properties make a function “pure”

1. Its output depends only on its input
2. It has no side-effects

Referential Transparency

Calling a function with the same input results in the same output

• One can replace a function call with its result, without affecting the behavior of the program
• It makes your code easy to read and understand

F# IDE Setup

Visual Studio Code

1. Download Visual Studio Code: https://code.visualstudio.com/downloadLinks to an external site..
2. Open VS Code by launching the downloaded file and go to the “Extensions“ tab (on the left). Install plugins: Ionide F#, C# (Microsoft’s plugin) and fsharp-language-server for Visual Studio Code.
3. Download and install the latest version of SDK from https://dotnet.microsoft.com/en-us/download/dotnet/6.0Links to an external site.
4. Open a command line.
5. Check the home directory of .NET SDK on your machine (most likely on MacOS: /usr/local/share/dotnet/dotnet) by typing the following command:
   find / -name dotnet
6. Add .NET to the PATH (update the last part to reflect your local settings looked up in step 5):
   export PATH=$PATH:/usr/local/share/dotnet/dotnet
7. Restart your machine
8. Navigate to a parent directory of choice for your F# project.
9. Create a new project with the .NET CLI by executing the command:
   dotnet new console -lang "F#" -o NameOfTheProject
10. Open the parent folder of the project in VS Code and you’re ready to code!
11. Follow this tutorialLinks to an external site. to put in place DEBUG support in VS Code.

JetBrain Rider

JetBrains Rider is a cross-platform .NET IDE built using IntelliJ and ReSharper technology. It offers support for .NET and .NET Core applications on all platforms.

1. Get a students license hereLinks to an external site. before installing the tool.
2. Download the installerLinks to an external site. and follow the installation wizard. You can refer to this YT tutorialLinks to an external site. (optional).
3. Check the F# support plugin is enabled:
   • 3a. Press Ctrl + Alt + S to open the IDE settings and then select Plugins. Alternatively, click on “Jetbrains Rider”/Preferences in the Mac menu bar.
   • 3b. Open the “Installed” tab, find the “F# Support” plugin, and select the checkbox next to the plugin name.
4. Create a F# Console project:
   • 4a. In the side panel on startup select Projects -> New Solution
   • 4b. Search for F#
   • 4c. Click on console application
5. Check that F# interactive is activated as per this documentLinks to an external site..
6. Using the F# interactive:
   • 6a. Select the code to evaluate and click “Alt + Enter”
   • 6b. Assign a shortcut of your choice
7. Debugging in JetBrains Rider: refer to this documentLinks to an external site..

Mathematical function example in F#

increment a number by 1 : Add1(x) = x + 1

1

let add1 x = x + 1

let keyword defines a function and binds an identifier with a function

Function binding includes function name and function parameter

Function body is an expression that generates a return value

Syntax

• Parameters are separated by space
• The output of the function is the last expression in its definition
• Use indents for multi-line functions

Your first F# function

BMI calculator

$BMI = 703 * weight / height^{2}$

1
2

let bmi weight height =
	703.0 * weight / (height * height) // Note: use 703.0 to make the output as float type

F# type inference

F# infers the parameter and return types when they’re not explicitly specified

• When argument type is not specified, function body is used to infer it.
• When return type is not specified, final body expression is used to infer it

Function signature

F# use type syntax for function signatures.

It denotes the types used and produced by a function.

1
2

// example of function signature
int -> int -> int

Function Type

All functions are values therefore have a type.

Function type is prescribed by its input and output types.

1
2

// function signature
t_in -> t_out

• function with generic types:

  • if a function works with any type, the compiler automatically infers a generic type
  • Notation: letter preceded by a tick: `a

  1 2	let areEqual x y = (x = y)

Equality test in F# is = operator

Function application

Function definition and application are separate.

Function is applied by providing its input, separated by a space

1
2
3

let bmi weight height =
	703.0 * weight / (height * height)
bmi 140.65 71.6

Function interactive

To run F# code in the console:

• Select the code you want to execute
• Click on “Option” + “Enter” in Mac OS
  • “Alt” + “Enter” in Window instead

The power of functions

Functions can be bound to identifiers.

1

let plus3 x = x + 3

Functions can be stored in data structures.

1

let listofFunctions = [plus; times2]

Functions can be passed down as an argument to other functions.

Functions can be a return value from a function call.

Types in F#

A type is a description of a set of values and a set of allowed operations on those values

A value is a member of a type.

A identifier is a name supply for a type or a function in program.

Basic type

Data type built into F#

• byte, int, float, double
• string, char
• bool
• unit
  • indicates the absence of an actual value
  • one possible value: ( )
  • strong sign of possible side effects

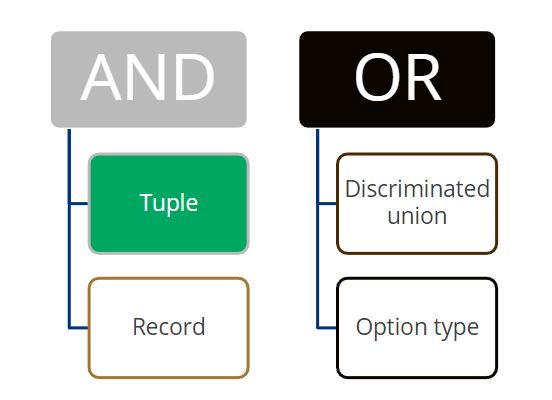

Composition type

Gather types into large structures

composition with And or Or operation.

Tuple

A grouping of unnamed but ordered values, possibly of different types.

1
2

(1, 2)
("Haoming", "Yuan")

Value separated by coma, encompassed by parentheses.

Tuples can contain values of multiple types.

Types: The type of a tuple is multiplication of type of each of its components

1
2

let personalInfo = ("Ted", "Lester", 32, 6.4, 94101)
 // type: (string * string * int * float * int)

• The order of the multiplication is important!

Accessing tuple element via library function

• fst : return the first element of a tuple
• snd: return the second element of a tuple

fst and snd functions require that the tuple be a pair (2-element tuple)

pros & cons

• Pros:

  • Available without definition
  • Can contain values of different types
  • lightweight structure

• Cons:

  • Difficult to figure out meaning of values

  • when dealing with multiple values, order might be confused

Comparison:

If all the values in a tuple are comparable, then the tuple is comparable to another tuple of the same type.

1
2
3

let myName = ("Rafal", "Wlodarski")
let herName = ("Sarah", "Jessica", "Parker")
let cityState = ("San Francisco", "CA")

Tuples can be compared using equality operation.

1

myName = cityState // false

Records

A grouping of named values

Definition:

1
2

type GeoCoord = { Lat: float; Long: float }
type Point3D = {X: float; Y:float; Z:float}

Construction:

1
2
3

let point3D1 = {Point3D.X = 0.1;
				Point3D.Y= 0.2;
				Point3D.Z= 0.3}

Copy and update record expression:

1

let point3D2 = {point3D1 with Y = 0.4}

Accessing record elements via “dot” notation.

1
2
3

let geoCoord1 = { Lat = 1.1; Long = 2.2 }
let x = geoCoord1.Lat
let y = geoCoord1.Long

Pros & Cons:

• Pros:

  • Allow to organize values into a type

  • Named field helps understand what a program is doing

  • Provide Class-like feature

• Cons:

  • Immutable

  • Has to define before using

Comparison:

Like tuples, records have structural equality semantics

1
2
3

let geoCoord1 = { Lat = 1.1; Long = 2.2 }
let geoCoord2 = { geoCoord1 with Lat = 2.2 }
geoCoord1 = geoCoord2 // false

Two records are equal if they have the same type and the values in each slot are equal.

Discriminated Union

Data structure representing a set of choices.

• Supports values from a number of named cases
• Each alternative is called a case

1
2
3
4

type AppleVariety =
	| GrannySmith // a case
	| PinkLady
	| Fuji

• Each case must be tagged with a label, also called identifier or tag
• Each case identifier must start with am UPPERCASE LETTER
• Case values are optional
• Each case can have different values and types

1
2
3

type FruitSnack =
| Apple of AppleVariety // identifier of type
| Banana of BananaVariety //BananaVariety needs to be defined

• *”of type”* syntax allows to indicate the data type of a case

Construction

Use a constructor that refers to one of the possible union cases.

1
2
3
4
5
6
7
8
9
10

type AppleVariety =
	| GrannySmith
	| PinkLady
let anApple = PinkLady // use the "PinkLady" constructor

type FruitSnack =
	| Apple of AppleVariety
	| Banana of BananaVariety
let aSnack = Apple PinkLady // use "Apple" constructor,
							// then "PinkLady" constructor

1
2
3

type Shape =
	| Rectangle of width : float * length : float
	| Circle of radius : float

During initialization use the named fields or rely on ordering of fields

1
2

let rectangle2 = Rectangle (width = 1.5, length = 2.2)
let rectanble1 = Rectangle(2.4, 3.2)

Simple Type:

A simple type discriminated union is a Discriminated Union with one case only.

1
2
3
4

type ProductCode =
| ProductCode of string
// simplified notation
type ProductCode = ProductCode of string

Used as a wrapper data type for primitive values

1
2

let a = ProductCode "ABC123"
let b = "ABC223"

Comparison:

Two unions are equal if they have the same type and the same case and the values for that case is equal.

1
2
3
4
5
6

type Contact =
	| Email of string
	| Phone of int
let email1 = Email "bob@gmail.com"
let email2 = Email "bobBarley@gmail.com"
email1 = email2 // false

Option

A Discriminated Union with two cases: value of some type and None

1
2
3
4

type MiddleName =
	| Name of string
	| None
type MiddleName = string option // simplified notation

Used when anticipated that there might or might not be a value.

Exercise: Match usage scenario with data type

F# specific types

Common .NET types

• User-defined value types (enum and struct)
• Classes and interfaces
• Arrays

Designed for pure functional programming

• The unit type
• Tuples
• Records
• Discriminated Unions
• Option types
• Lists

F# functional types - Advantage

1. They are immutable
2. They cannot be null
3. They have built-in structural equality and comparison
4. They have built-in pretty printing
